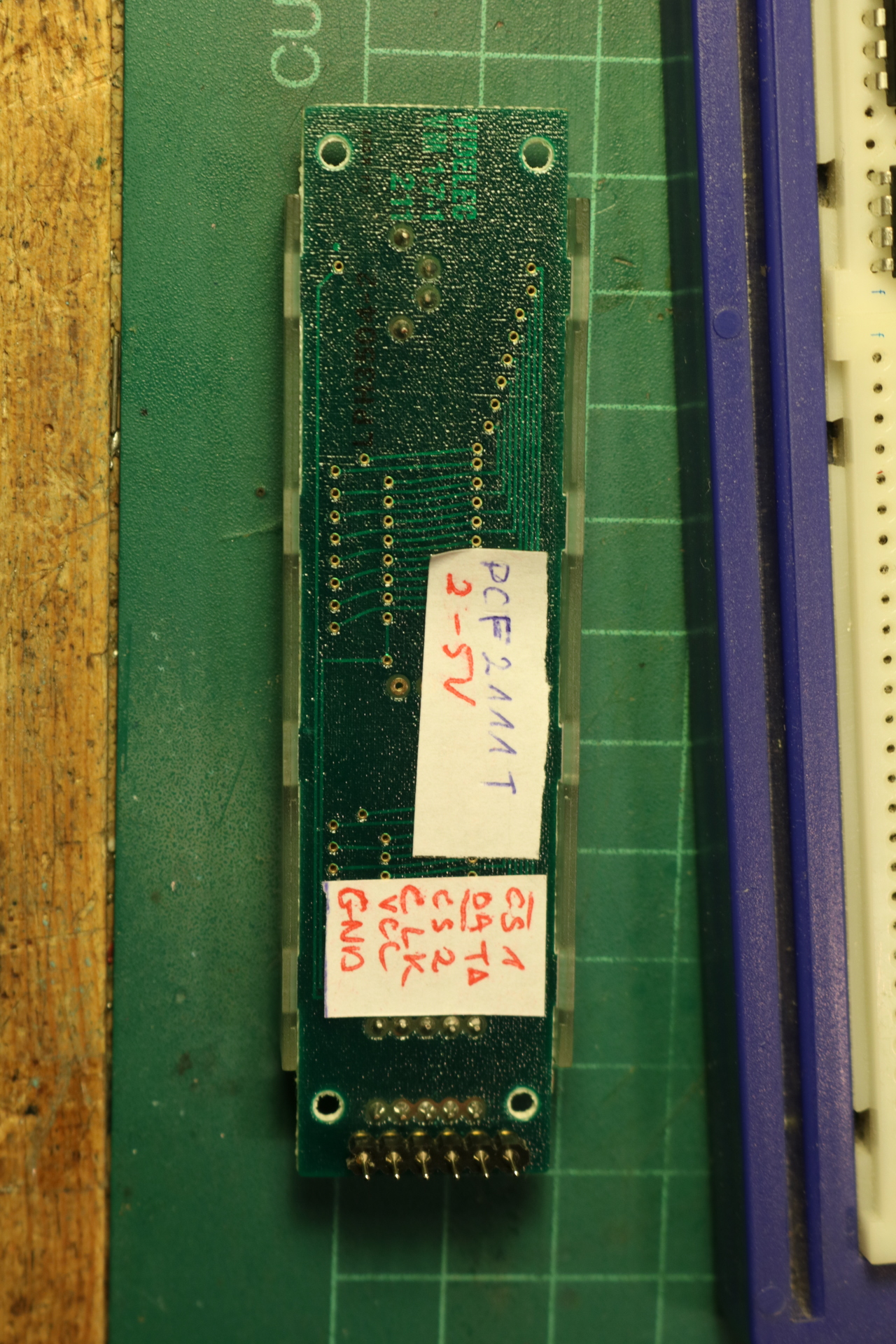

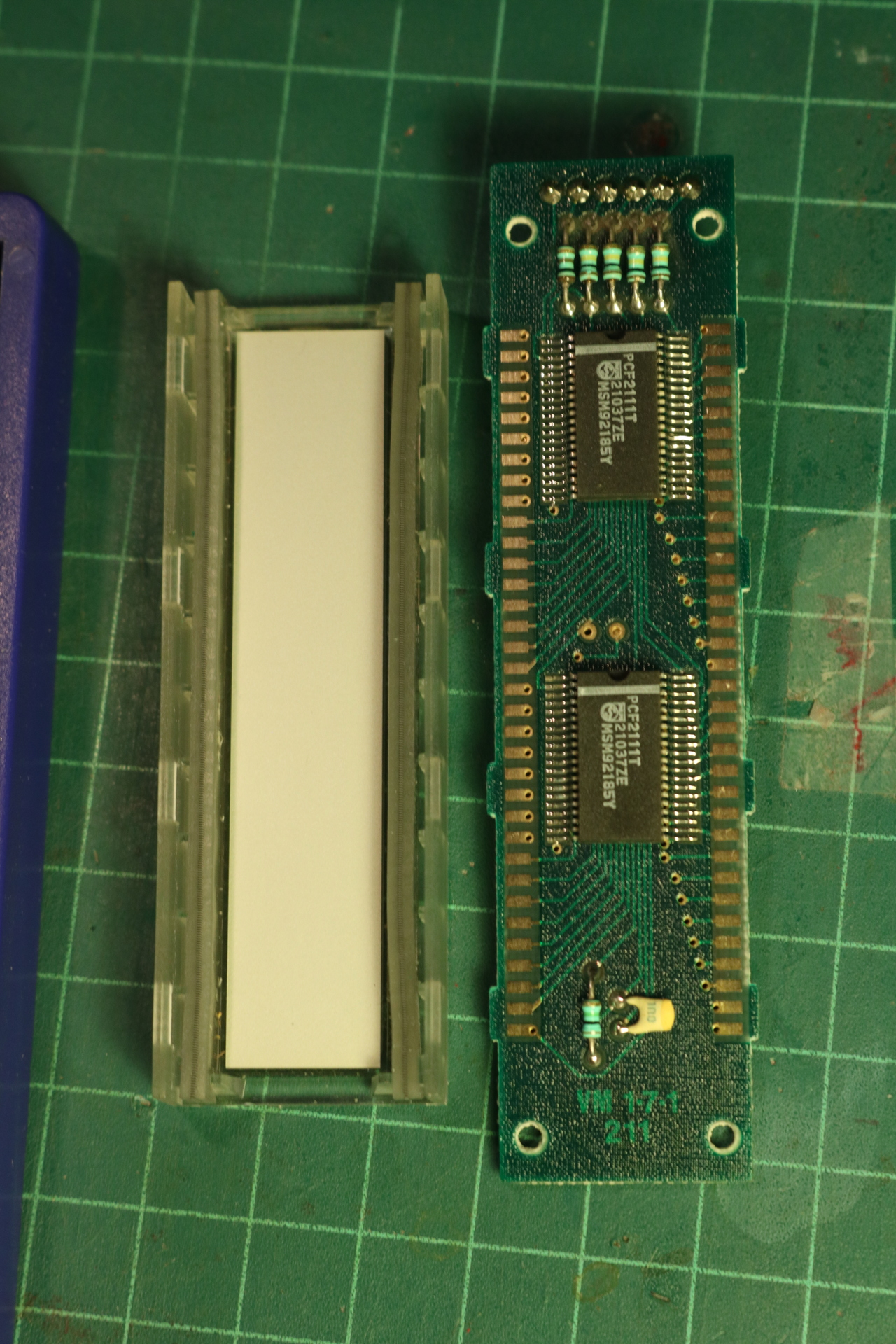

  PCF2111 LCD driver example code. Used with a dual-chip module (each chip
  drives 8 digits). Data and Clock lines are shared.

  This example code is written with portability in mind and can be used for PCF2111
  in any configuration. Future plans may be making a full ascii font (for this
  particular module).

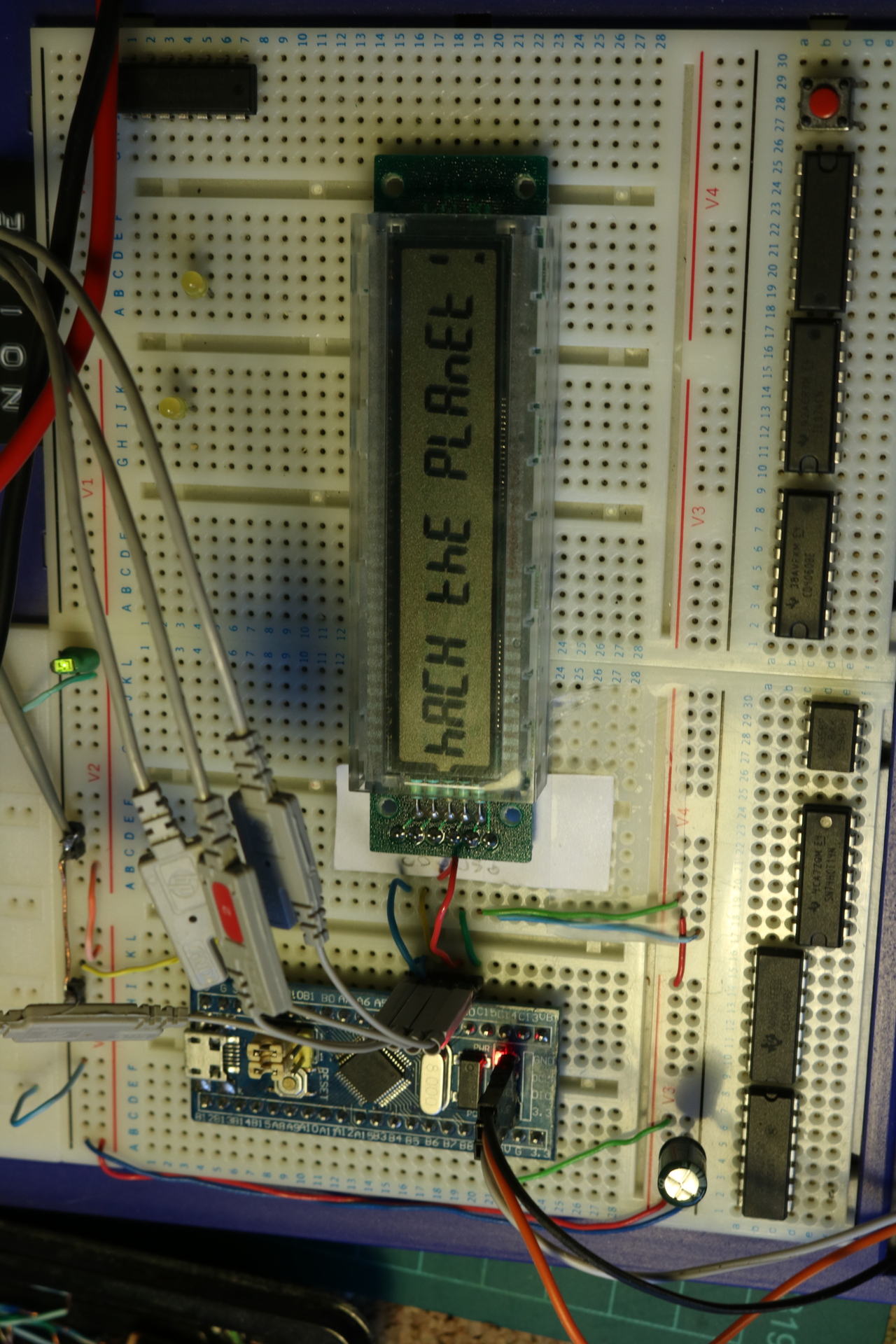

  The code displays a scrolling message on the 16 digit 7 segment LCD.
  A hexadecimal font (for this particular segment setup) extended with
  several characters is included.

  segment map: A or B indicates A/B register

      a1
     ---
    |   |a3
  b1| a2|
     ---
    |   |a4
  b2|   |
     --- __
     b4  \/b3

  docs:
  LOCM3 docs: http://libopencm3.org/docs/latest/stm32f1/html/
  PCF2111 datasheet: https://www.nxp.com/docs/en/data-sheet/PCF21XXC_FAM.pdf

  Copyright 2020 polprog.net. Released on 3-clause BSD. See COPYING file
  for details
